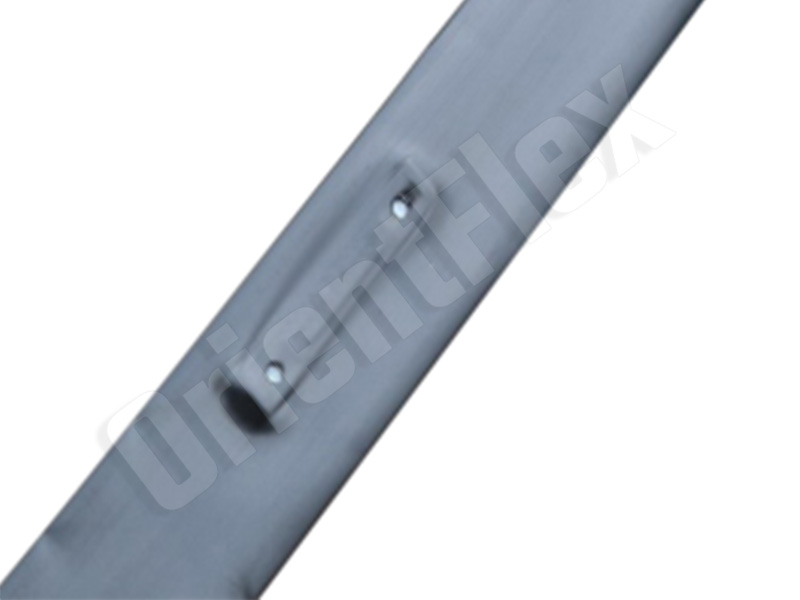

Double Hole Drip Irrigation Tape
Double Hole Drip Irrigation Tape
Inner anti-blocking double-hole drip irrigation tape. The structure of the drip irrigation tape is composed of a PE tube and a dripper, in which the tube and the dripper are designed as double holes;
Abbreviation : D-tape
Materials: PE
In addition, the dripper is provided with a pressure relief groove, a water blocking column and a control water pressure tank, and the water flow Effective control, moderate water output during drip irrigation. Moreover, once the water of the drip irrigation tape stops during the circulation and drainage process, the water is discharged from the double holes.
Double Hole Drip Irrigation Tape Spec
Product Code | Thickness | Diameter | Emitter Spacing | Flow Rate | Working Pressure | Standard Packing |
mm | (mm) | cm | (L/H) | (Bar) | (m/roll) | |
DTAPE1100 | 0.15 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE1200 | 0.15 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE1300 | 0.15 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE4100 | 0.18 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE4200 | 0.18 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE4300 | 0.18 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE5100 | 0.2 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE5200 | 0.2 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE5300 | 0.2 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
DTAPE7100 | 0.3 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE7200 | 0.3 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE7300 | 0.3 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE8100 | 0.4 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE8200 | 0.4 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE8300 | 0.4 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
DTAPE9200 | 0.6 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
DTAPE9300 | 0.6 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
DTAPE9400 | 0.6 | 16 | 40 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
Advantages Of Double Hole Drip Irrigation Tape
1. Dripper and tube are integrated, easy to install and use, low cost and low investment
2. The dripper has a self-filtering window, and the irrigation uniformity is high, which can reach more than 98%
3. Strong anti-aging performance, can be used for many years under normal conditions
4. Can apply water and fertilizer at the same time, improve fertilizer utilization rate, save labor and fertilizer 5. It can reduce soil compaction, enhance soil permeability, and facilitate root development.
Applicable conditions
1. It is used to grow crops in greenhouses to reduce pests and diseases, save fertilizers and pesticides, and improve economic benefits.
2. Used for orchard irrigation, it can effectively increase yield, improve fruit quality, and effectively control weed growth.
3. It is suitable for various field crops such as cotton, Chinese herbal medicine, watermelon, field vegetables, etc., to improve the mechanized planting strength.
4. The drip irrigation tape can be bent around the ridge and is easy to operate.
