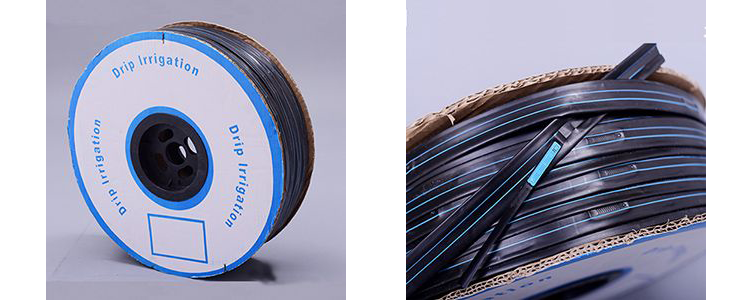

Flat Emitter Drip Tape
Flat Emitter Drip Tape
The inner flat emitter drip irrigation tape is an integrated drip irrigation equipment that inserts a flat emitter in the inner wall of the tape.The water drop to the roots of the crops through the emitter orifice on the drip irrigation tape, to realize the water and fertilizer irrigation together and also precise irrigation.

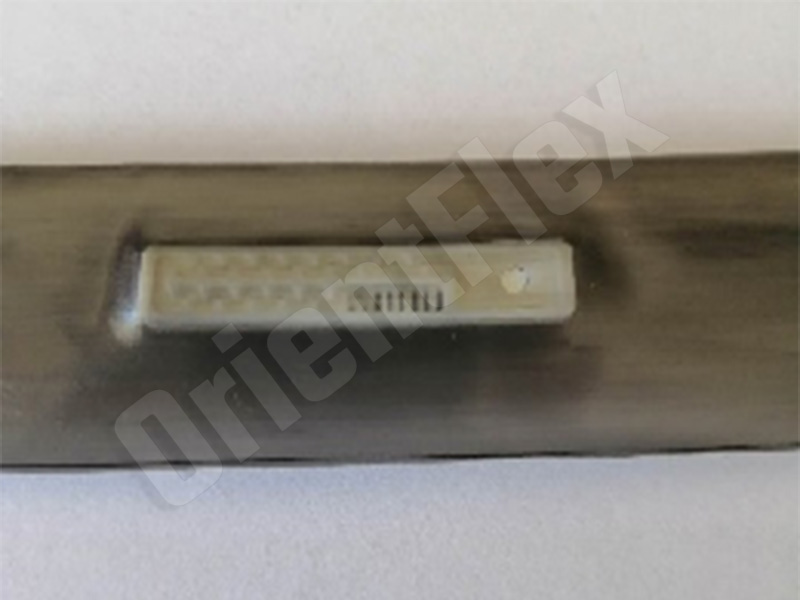

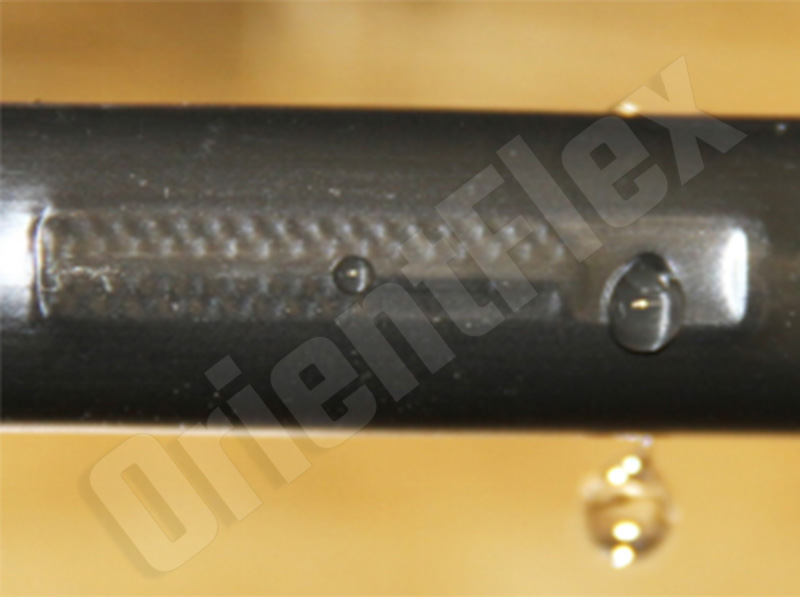

The emitter has a self-filtering window, which has good anti-clogging performance. The labyrinth flow channel has a pressure compensation effect.The distance between the emitters can be determined according to customer requirements.
Characteristics:
It is suitable to annual crops by its accurate equalized irrigation.
Clogging free for the nursing solution of hydroponics.
It is available to irrigate vast area at same with low volume.
Superior durability with raw material of chemical-proof and anti-ultraviolet rays.
Additional insert of the high-technology dripper inside the hose.
Preventing over moisture in the air and controlling appearance of harmful insects
Flat Emitter Drip Tape Spec
Product Code | Thickness | Diameter | Emitter Spacing | Flow Rate | Working Pressure | Standard Packing |
mm | (mm) | (cm) | (L/H) | (Bar) | (m/roll) | |
STAPE1100 | 0.15 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE1200 | 0.15 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE1300 | 0.15 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE4100 | 0.18 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE4200 | 0.18 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE4300 | 0.18 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE5100 | 0.2 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE5200 | 0.2 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE5300 | 0.2 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500/1000/2000 |
STAPE7100 | 0.3 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE7200 | 0.3 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE7300 | 0.3 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE8100 | 0.4 | 16 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE8200 | 0.4 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE8300 | 0.4 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 300/500/1000 |
STAPE9200 | 0.6 | 16 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
STAPE9300 | 0.6 | 16 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
STAPE9400 | 0.6 | 16 | 40 | 1; 1.38 ; 2; 2.7; 3 | 1 | 200/300/500 |
1. The emitter has filter window with good anti-blocking ability.performance.
2. Turbulent flow channel design, uniform irrigation.
3. The emitter and pipe line have strong integrity.
4. Different emitters spacing, application range is wide.
Cutting down production costs.
Decreasing damage by from insects.
Drip irrigation pipes are available in a variety of sizes, with wall thicknesses ranging from 0.2mm to 1.2mm. Obviously, the thicker it is, the more resistant it is to mechanical damage. All drip irrigation pipes are added with anti-aging materials.
The short life of many thin-walled drip irrigation tapes is mainly due to mechanical damage, resulting in water leakage. From the perspective of mechanical damage, the thicker the drip irrigation pipe, the longer the life. Different crops and cultivation methods have different requirements on the service life.
Generally, the products with a design life of 1-3 years for crops with high cultivation density (such as strawberries) are more economical and reasonable, while the products with a design life of 8-10 years for fruit trees with low cultivation density are more economical and reasonable. Of course, the service life is long, and the cost of one-time investment will be higher.
We also supply other customer required products, for more details please contact with our sales get more information.
Flat Emitter Drip Tape Characteristics
⬤ It is suitable to annual crops by its accurate equalized irrigation.
⬤ Clogging free for the nursing solution of hydroponics.
⬤ It is available to irrigate vast area at same with low volume.
⬤ Superior durability with raw material of chemical-proof and anti-ultraviolet rays.
⬤ Preventing over moisture in the air and controlling appearance of harmful insects
Flat Drip Tape Application
The Flat drip irrigation tape is widely used in various drip irrigation projects.
1. It is used to grow crops in greenhouses can reduce pests and diseases, save fertilizers and pesticides, and improve economic benefits.
2. Used for orchard irrigation, it can effectively increase yield, improve fruit quality, and effectively control weed growth.
3. It is suitable for various field crops such as cotton, Chinese herbal medicine, watermelon, field crops, etc.
Cultivation with nursing solution.
