Under Ground Drip Irrigation Tape
Under Ground Drip Irrigation Tape
The Under ground drip irrigation tape is based on the conventional drip irrigation tape products. The shape of the water outlet is changed to make it have the function of opening and closing.
Abbreviation : U-tape
Materials: PE
When the pressure of opening the valve increases, the water outlet opens, and when the closing pressure of the valve decreases , The water outlet is closed, which can effectively prevent soil, rhizomes, etc. from blocking the water outlet.
Under Ground Drip Irrigation Tape Spec
| Product Code | Thickness | Diameter | Emitter Spacing | Flow Rate | Working Pressure | Standard Packing |
| mm | (mm) | cm | (L/H) | (Bar) | (m/roll) | |
| UTAPE4100 | 16 | 0.18 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE4150 | 16 | 0.18 | 15 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE4200 | 16 | 0.18 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE4300 | 16 | 0.18 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE5100 | 16 | 0.2 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE5150 | 16 | 0.2 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE5200 | 16 | 0.2 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE5300 | 16 | 0.2 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000/2000 |
| UTAPE7100 | 16 | 0.3 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE7150 | 16 | 0.3 | 15 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE7200 | 16 | 0.3 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE7300 | 16 | 0.3 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE7400 | 16 | 0.3 | 40 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE8100 | 16 | 0.4 | 10 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE8150 | 16 | 0.4 | 15 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE8200 | 16 | 0.4 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE8300 | 16 | 0.4 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE8400 | 16 | 0.4 | 40 | 1; 1.38 ; 2; 2.7; 3 | 1 | 1000 |
| UTAPE9200 | 16 | 0.6 | 20 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500 |
| UTAPE9300 | 16 | 0.6 | 30 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500 |
| UTAPE9400 | 16 | 0.6 | 40 | 1; 1.38 ; 2; 2.7; 3 | 1 | 500 |
Advantages of buried drip tape
1. The buried drip irrigation tape has no evaporation loss of ground water and is more water-saving than the ground drip irrigation tape
2. The buried drip irrigation tape can be used for a long time, and there is no need to install the drip irrigation system every season, which reduces the construction cost.
3. The buried drip irrigation tape can ensure maximum plant nutrition.
4. The buried drip irrigation tape avoids animal or human damage to the dripper and pipeline.
Product application

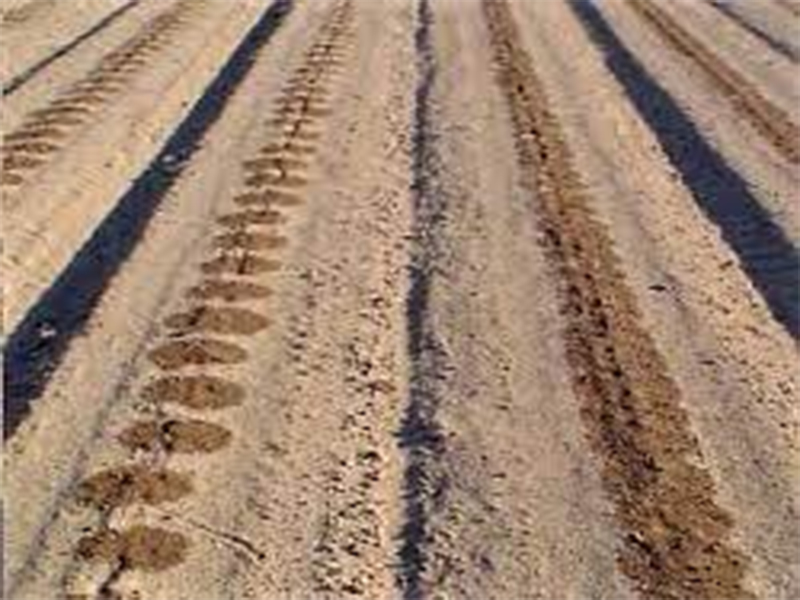

Buried drip tape is suitable for laying along crop rows in greenhouses, greenhouses and fields, and the maximum laying length on flat ground is 194 meters.
